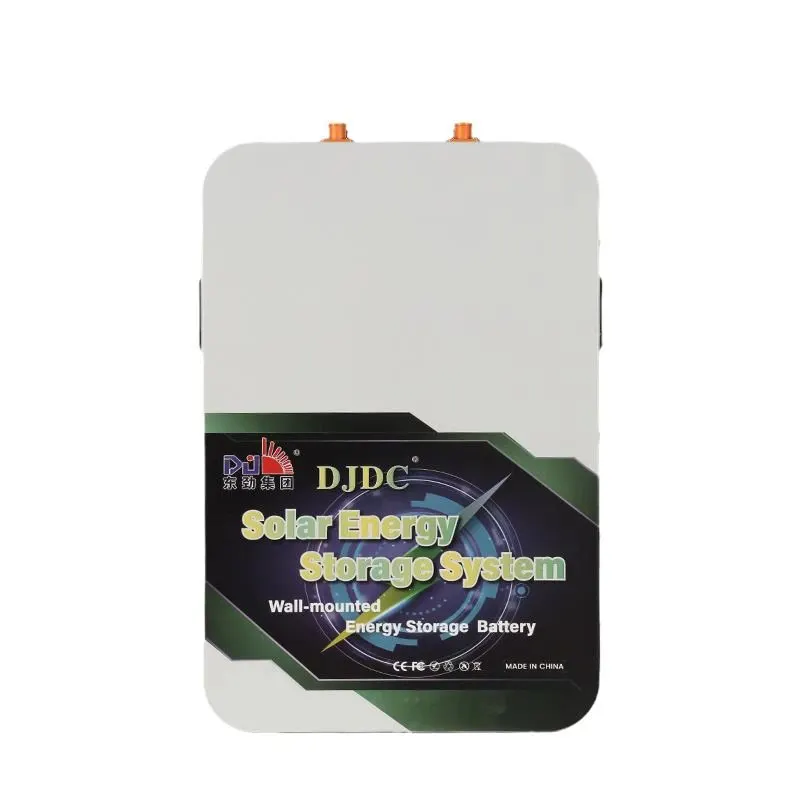

5.12kWh Wall Mounted Power Wall Lithium Iron Phosphate (LFP) Battery featuring advanced BMS, high energy density, and compatibility with top inverter brands.
Contact us directly on WhatsApp to get the latest live rates & discounts.
As a leading manufacturer of lithium-ion batteries, Dongjin presents the Power Wall Lithium Battery 5kWh (5.12kWh)—a cutting-edge energy storage solution designed for residential, commercial, and off-grid applications. Boasting an exceptional energy density of 157Wh/kg, it delivers reliable backup power, detects outages automatically, and seamlessly stores solar energy for use when the sun isn't shining.
Built with high-safety LFP cells, a patented battery management system (BMS), and efficient equalization technology, this modular unit ensures long-term stability, overcharge/discharge protection, and a cycle life exceeding 5000 cycles.
High energy density (157Wh/kg) storing maximum energy in a compact footprint.
Advanced BMS protection functions safeguarding against overcharging, overheating, and short circuits.
Modular design allowing easy wall-mounted installation and scaling.
Compatible with various top global inverter brands (Growatt, Goodwe, Deye, Victron, etc.).
Low-maintenance and long-lasting performance exceeding 5000 cycles.
| Nominal Capacity | 100Ah |
|---|---|
5.12kWh Wall Mounted Lithium Iron Phosphate (LFP) Battery with built-in BMS, LCD screen, and optional WiFi/Bluetooth communication for home solar energy storage.
| Nominal Voltage |
|---|
| 51.2V |
| Energy | 5120Wh (5kWh) |
|---|
| Cell Quantity in Series | 16S |
|---|
| Charge Voltage | 58.4V |
|---|
| Discharge Cut-off Voltage | 40V |
|---|
| Standard / Max. Charge Current | 20A / 50A |
|---|
| Standard / Max. Continuous Discharge Current | 20A / 100A |
|---|
| Cycle Life | >5000 times (80% DOD, at 25°C) |
|---|
| Dimensions | 420 × 602 × 142 mm |
|---|
| Weight | Approx. 45 kg |
|---|
| Working Temperature Range | Charge 0°C to 45°C | Discharge: -20°C to 60°C |
|---|
| Communication Interface | RS485, RS232, CAN |
|---|
| Series / Parallel Mode | Parallel connection only |
|---|
| Protection Class | IP32 |
|---|
2.56kWh Wall Mounted Lithium Iron Phosphate (LFP) Battery featuring advanced BMS, 5000+ lifecycle, and high-rate discharge for solar energy storage.

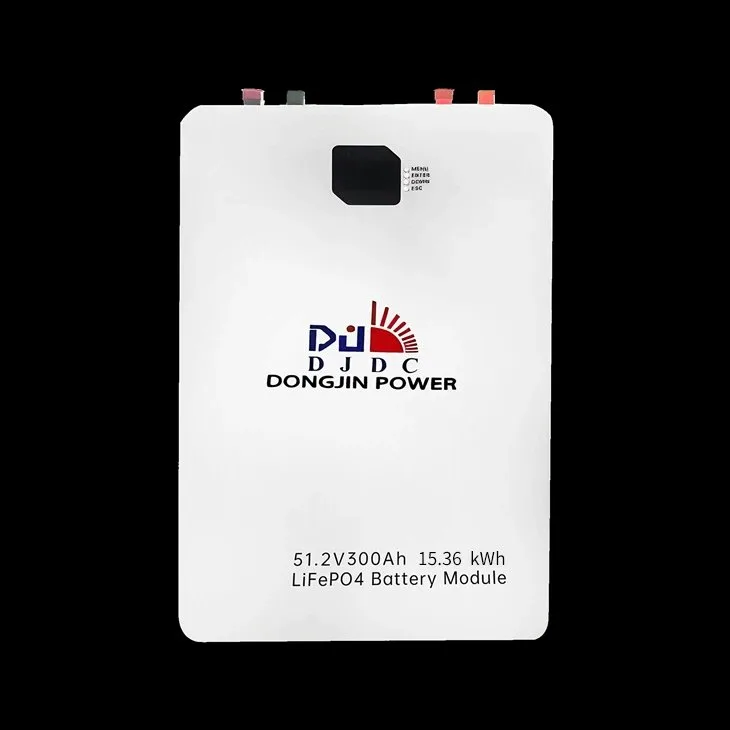

15.36kWh High-Capacity Lithium Iron Phosphate (LFP) Power Wall Battery featuring an intelligent BMS, LCD screen, and 300A max discharge current for heavy-duty home solar energy storage.
