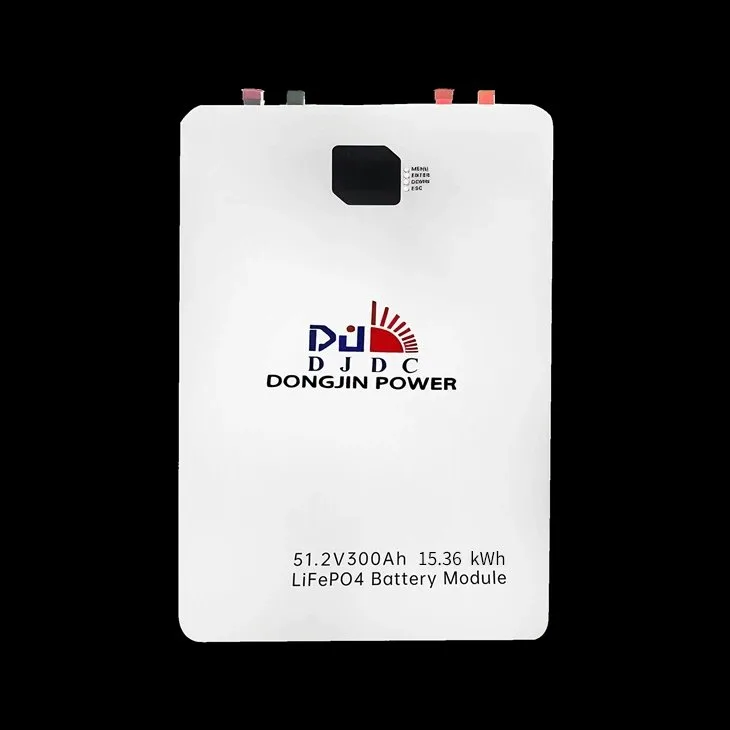

15.36kWh High-Capacity Lithium Iron Phosphate (LFP) Power Wall Battery featuring an intelligent BMS, LCD screen, and 300A max discharge current for heavy-duty home solar energy storage.
Contact us directly on WhatsApp to get the latest live rates & discounts.
The DONGJIN 51.2V 300Ah (15.36kWh) Lithium Iron Phosphate (LFP) Battery is a heavy-duty energy storage powerhouse designed for extensive residential and commercial solar applications. Equipped with an intelligent Battery Management System (BMS) and a real-time display LCD screen, it integrates multi-level safety protections against overcharge, over-discharge, overcurrent, and overtemperature.
Maintenance-free, exceptionally stable, and delivering over 5000 cycles at 80% DOD, this high-capacity unit provides robust backup power to keep your home running smoothly day or night.
Advanced intelligent BMS providing comprehensive safety checks and cell balancing.
Built-in LCD screen for clear, real-time status and performance tracking.
High-rate discharge capability supporting up to 300A continuous current.
Long-lasting performance exceeding 5000 cycles at 80% Depth of Discharge.
| Nominal Capacity | 300Ah |
|---|---|
| Nominal Voltage |
5.12kWh Wall Mounted Lithium Iron Phosphate (LFP) Battery with built-in BMS, LCD screen, and optional WiFi/Bluetooth communication for home solar energy storage.
| 51.2V |
| Energy | 15360Wh (15.36kWh) |
|---|
| Cell Quantity in Series | 16S |
|---|
| Charge Voltage | 58.4V |
|---|
| Discharge Cut-off Voltage | 40V |
|---|
| Standard / Max. Charge Current | 150A / 200A |
|---|
| Nominal / Max. Continuous Discharge Current | 150A / 300A |
|---|
| Cycle Life | >5000 times (80% DOD, at 25°C) |
|---|
| Dimensions | 805 × 440 × 265 mm |
|---|
| Weight | Approx. 135 kg |
|---|
| Working Temperature Range | Charge 0°C to 45°C | Discharge: -20°C to 60°C |
|---|
| Communication Interface | RS485, RS232, CAN |
|---|
| Certificates | MSDS, UN38.3, FCC, CE, ROHS |
|---|
| Protection Class | IP32 |
|---|
2.56kWh Wall Mounted Lithium Iron Phosphate (LFP) Battery featuring advanced BMS, 5000+ lifecycle, and high-rate discharge for solar energy storage.

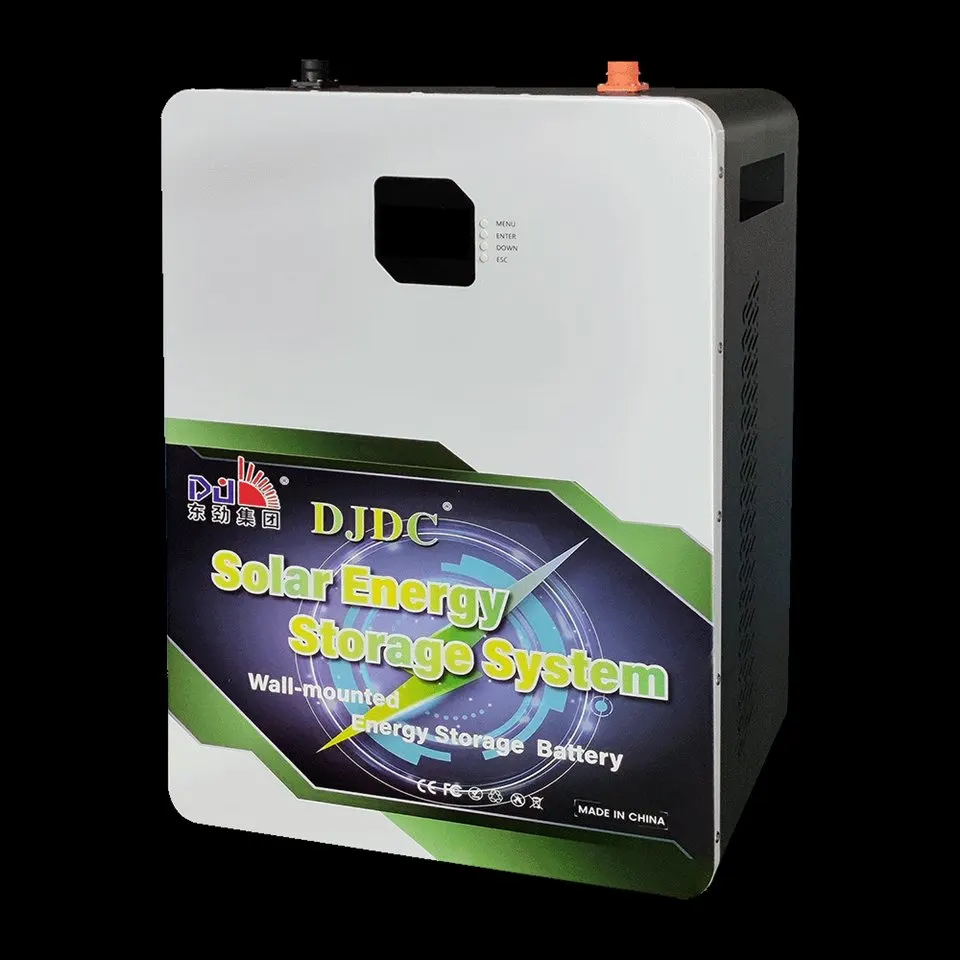

10.24kWh Wall Mounted Lithium Iron Phosphate (LFP) Power Wall Battery featuring an intelligent BMS, LCD screen, and 200A max continuous discharge for home solar storage.
