2.56kWh Wall Mounted Lithium Iron Phosphate (LFP) Battery featuring advanced BMS, 5000+ lifecycle, and high-rate discharge for solar energy storage.
Contact us directly on WhatsApp to get the latest live rates & discounts.

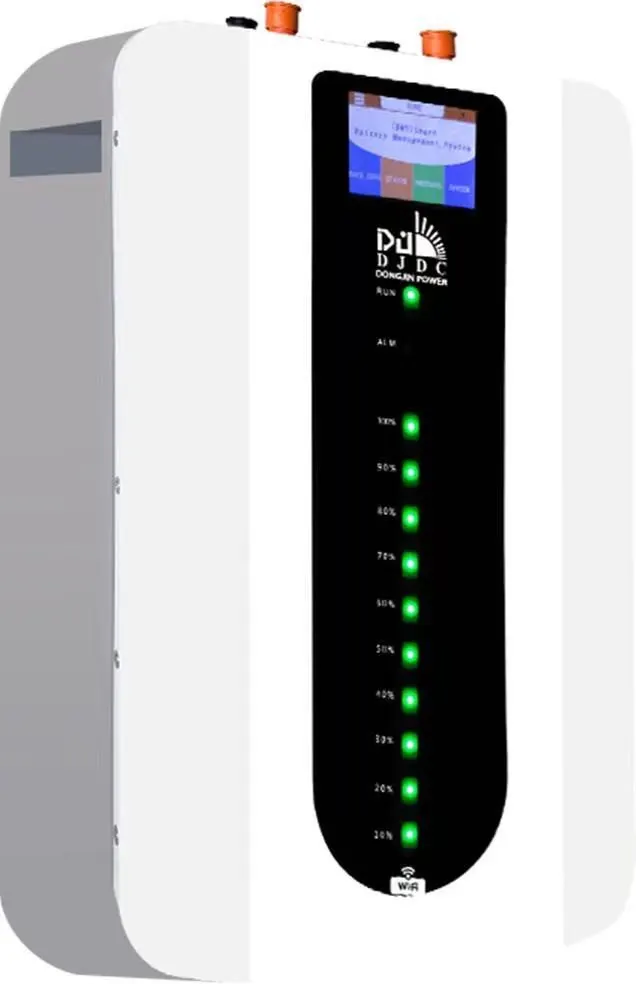

The Dongjin LiFePO4 24V 100Ah (2.56kWh) Lithium Battery is a high-performance energy storage solution designed for residential and light commercial backup power. Built with high-safety LFP cells and an intelligent Battery Management System (BMS), it delivers exceptional reliability, high-rate discharge performance, and a long lifespan of over 5000 cycles.
Compact, lightweight at approximately 25 kg, and wall-mounted, it integrates smoothly with top global inverter brands (such as Growatt, Goodwe, Deye, and Victron) to provide a clean, environmentally friendly backup power system.
High energy density design offering a compact and lightweight footprint (approx. 25kg).
Long life battery design supported by efficient equalization technology (>5000 cycles).
Compatible with various global top inverter brands (Growatt, Goodwe, Deye, Victron, etc.).
Wall-mounted installation optimized for space-saving home and industrial deployment.
| Nominal Capacity | 100Ah |
|---|---|
5.12kWh Wall Mounted Lithium Iron Phosphate (LFP) Battery with built-in BMS, LCD screen, and optional WiFi/Bluetooth communication for home solar energy storage.
| Nominal Voltage |
|---|
| 25.6V |
| Energy | 2560Wh (2.56kWh) |
|---|
| Charge Voltage | 29.2V |
|---|
| Discharge Cut-off Voltage | 20V |
|---|
| Standard / Max. Charge Current | 20A / 50A |
|---|
| Standard / Max. Continuous Discharge Current | 20A / 100A |
|---|
| Cycle Life | >5000 times (80% DOD, at 25°C) |
|---|
| Dimensions | 495 × 315 × 170 mm |
|---|
| Weight | Approx. 25 kg |
|---|
| Communication Interface | RS485, RS232, CAN |
|---|
| Series / Parallel Mode | Parallel connection only |
|---|
| Certificates | MSDS, UN38.3, FCC, CE, ROHS |
|---|
| Protection Class | IP32 |
|---|
