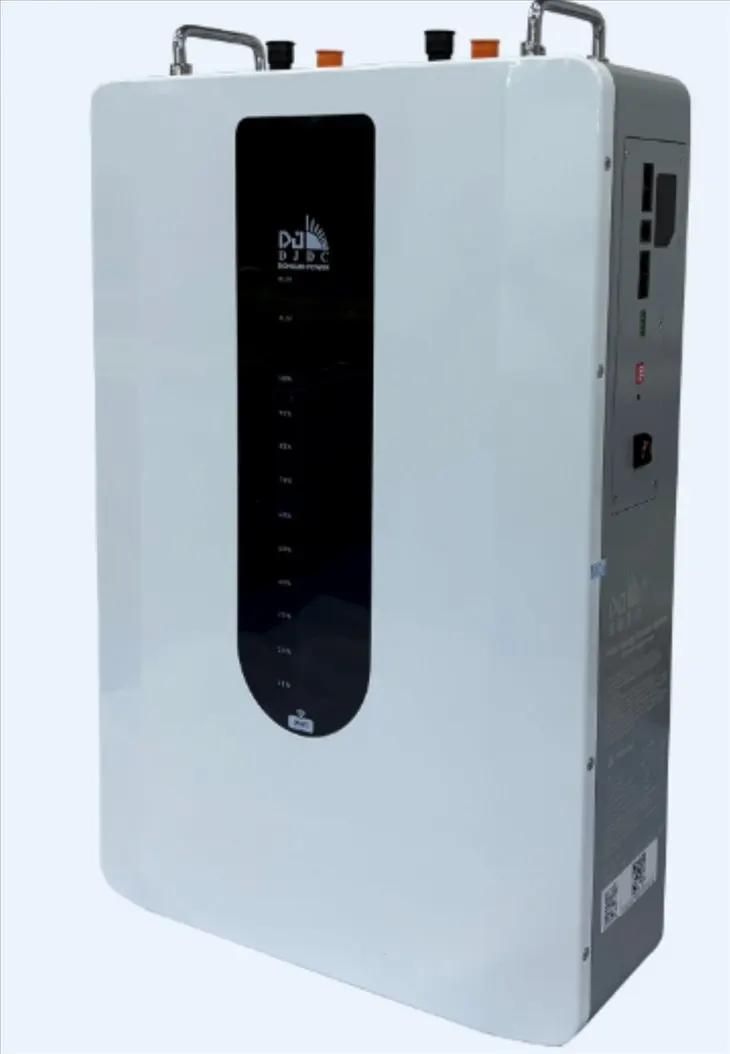

5.12kWh Wall Mounted Lithium Iron Phosphate (LFP) Battery with built-in BMS, LCD screen, and optional WiFi/Bluetooth communication for home solar energy storage.
Contact us directly on WhatsApp to get the latest live rates & discounts.
The DONGJIN Lithium Battery is a 51.2V 100Ah Lithium Iron Phosphate (LFP) Battery featuring a built-in battery management system (BMS) and an interactive LCD screen that integrates and displays multi-level safety features for top-tier performance. Designed specifically for home solar energy storage, this maintenance-free power wall module integrates high-performance LiFePO4 cells with intelligent monitoring to deliver reliable backup power day or night.
The advanced BMS protects the battery against overcharge, over-discharge, overcurrent, overtemperature, and reverse connection, ensuring exceptionally safe and stable operation.
Clear LCD screen displaying real-time operational status and performance metrics.
Maintenance-free design optimized for seamless solar or independent backup integration.
High cycle life exceeding 5000 cycles at 80% Depth of Discharge (DOD).
Smart remote monitoring support via WiFi, Bluetooth, CAN, and RS485 communication protocols.
| Nominal Capacity | 100Ah |
|---|---|
2.56kWh Wall Mounted Lithium Iron Phosphate (LFP) Battery featuring advanced BMS, 5000+ lifecycle, and high-rate discharge for solar energy storage.
| Nominal Voltage |
|---|
| 51.2V |
| Energy | 5120Wh (5.12kWh) |
|---|
| Cell Quantity in Series | 16S |
|---|
| Charge Voltage | 58.4V |
|---|
| Discharge Cut-off Voltage | 40V |
|---|
| Standard / Max. Charge Current | 40A / 100A |
|---|
| Standard / Max. Continuous Discharge Current | 40A / 100A |
|---|
| Cycle Life | >5000 times (80% DOD, at 25°C) |
|---|
| Dimensions | 602 × 420 × 174 mm |
|---|
| Weight | Approx. 54 kg |
|---|
| Working Temperature Range | Charge 0°C to 45°C | Discharge: -20°C to 60°C |
|---|
| Communication Interface | CAN, RS485, Bluetooth, WiFi |
|---|
| Series / Parallel Mode | Parallel connection only |
|---|
| Certificates | MSDS, IEC, ROHS, CE, UN38.3 |
|---|
| Protection Class | IP32 |
|---|
