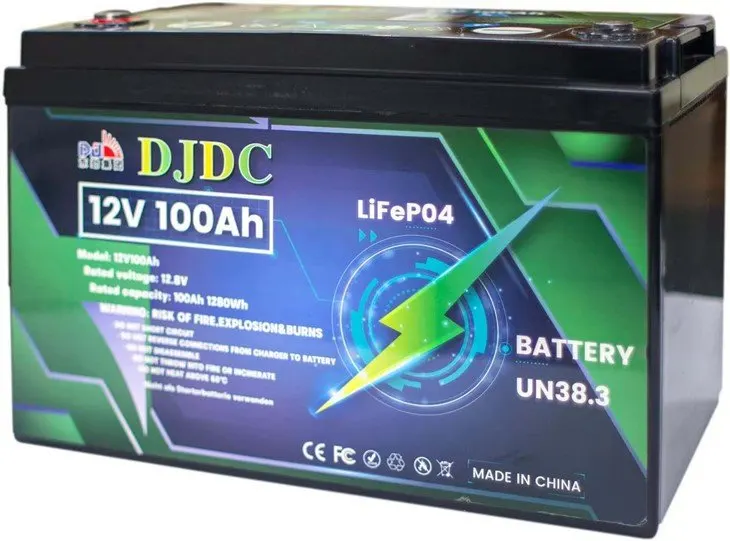

Engineered with Lithium Iron Phosphate (LiFePO4) technology, providing twice the power, half the weight, and 4 times longer life than sealed lead-acid batteries with an advanced BMS.
Contact us directly on WhatsApp to get the latest live rates & discounts.
High cycle and service life (>5000 cycles at 80% DOD)
1C high-performance lithium battery with fast charging capabilities
Advanced BMS with current-limiting function and multi-level safety protection
Maintenance-free, non-toxic, non-corrosive, contains no heavy metals or acid
Excellent high-temperature and low-temperature performance (-20°C to 60°C)
| Nominal Capacity | 100Ah |
|---|---|
| Nominal Voltage |
High-performance 30kVA / 24kW true online double-conversion 3-phase UPS with internal battery and digital signal processing (DSP) control.
| Cell Quantity in Series | 4S |
|---|
| Energy | 1280Wh |
|---|
| Charge Voltage | 14.6V |
|---|
| Discharge Cut-off Voltage | 10V |
|---|
| Charge Method | CC/CV |
|---|
| Standard / Max. Charge Current | 20A / 50A |
|---|
| Max. Continuous Discharge Current | 100A |
|---|
| Cycle Life | >5000 times |
|---|
| Dimension | 328 x 172 x 214.5 mm |
|---|
| Weight | Approx. 12 kg |
|---|
| Warranty | 5 Years (3 years Parts, 2 years Service) |
|---|
