10.24kWh Wall Mounted Lithium Iron Phosphate (LFP) Power Wall Battery featuring an intelligent BMS, LCD screen, and 200A max continuous discharge for home solar storage.
Contact us directly on WhatsApp to get the latest live rates & discounts.

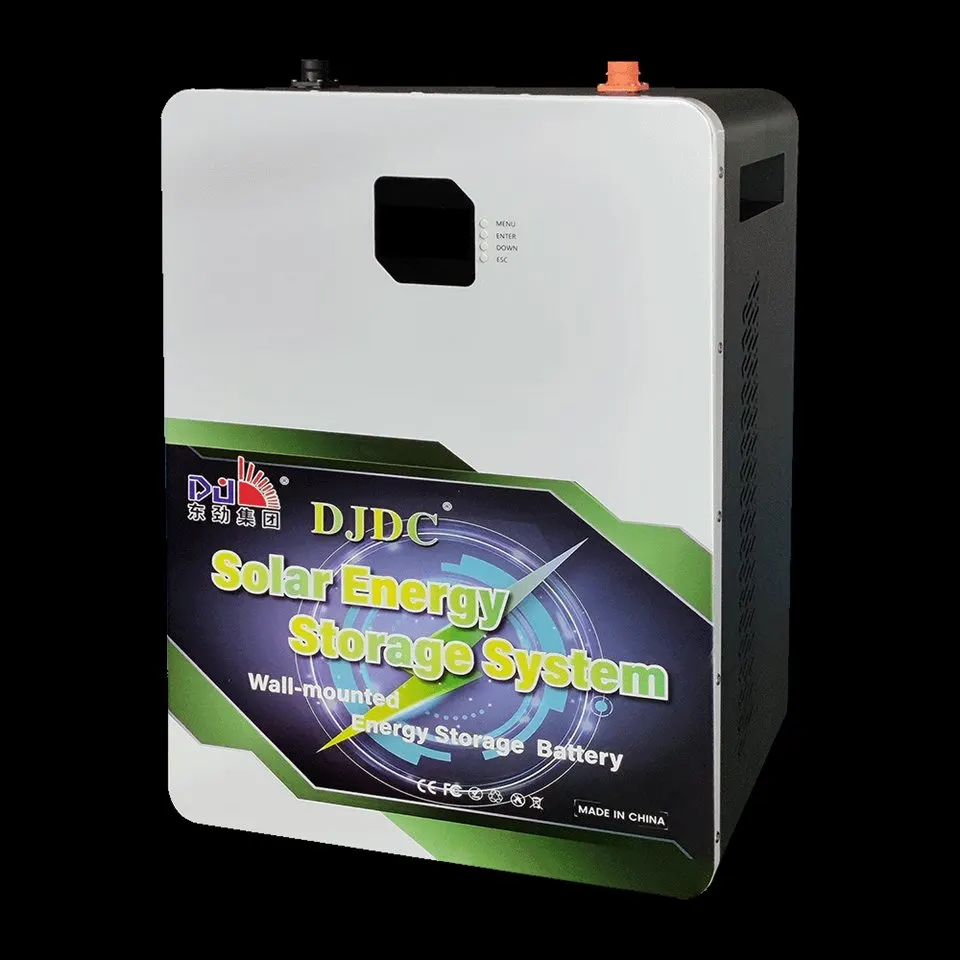

The DONGJIN 51.2V 200Ah (10.24kWh) Lithium Iron Phosphate (LFP) Battery is a high-capacity power wall solution designed for residential solar energy storage. Equipped with an intelligent Battery Management System (BMS) and a clear LCD display screen, it delivers multi-level safety protections against overcharge, over-discharge, overcurrent, overtemperature, and short circuits.
Maintenance-free, exceptionally durable with over 5000 cycles at 80% DOD, and built for seamless integration with solar inverters, this unit provides reliable and stable backup power to keep your home running day and night.
Intelligent BMS with comprehensive safety checks and cell balancing.
Built-in LCD screen for real-time tracking of operational metrics.
High continuous discharge current up to 200A.
Long cycle life exceeding 5000 cycles at 80% Depth of Discharge
| Nominal Capacity | 200Ah |
|---|---|
| Nominal Voltage |
5.12kWh Wall Mounted Lithium Iron Phosphate (LFP) Battery with built-in BMS, LCD screen, and optional WiFi/Bluetooth communication for home solar energy storage.
| 51.2V |
| Energy | 10240Wh (10.24kWh) |
|---|
| Cell Quantity in Series | 16S |
|---|
| Charge Voltage | 58.4V |
|---|
| Discharge Cut-off Voltage | 40V |
|---|
| Standard / Max. Charge Current | 40A / 100A |
|---|
| Cycle Life | >5000 times (80% DOD, at 25°C) |
|---|
| Dimensions | 580 × 440 × 280 mm |
|---|
| Weight | Approx. 90 kg |
|---|
| Certificates | MSDS, UN38.3, FCC, CE, ROHS |
|---|
| Protection Class | IP32 |
|---|
