Drop-in lead acid replacement 12V 200Ah (2.56kWh) LiFePO4 battery featuring integrated BMS, durable ABS enclosure, and support for series connection up to 48V.
Contact us directly on WhatsApp to get the latest live rates & discounts.

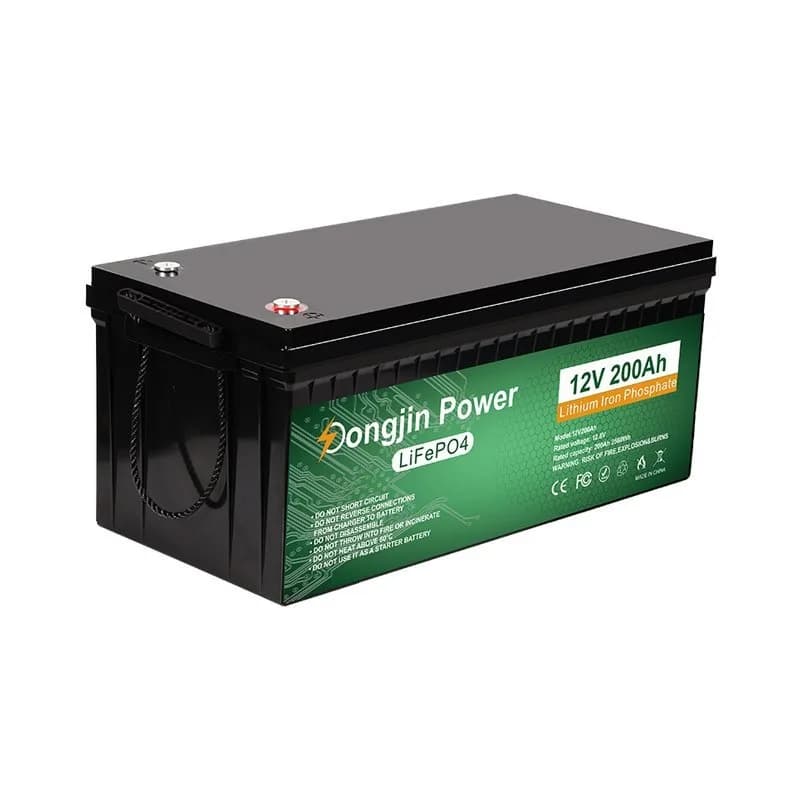

The Dongjin 12V 200Ah (2.56kWh) lithium iron battery is designed for portable energy storage and deep-cycle applications. Built with brand new, A-grade LiFePO4 battery cells and an integrated Battery Management System (BMS), it offers a reliable, drop-in lead acid replacement solution. It is engineered to withstand harsh high-temperature conditions, features a durable ABS enclosure, and supports series connection up to 48V for backup power systems.
Supports series connection up to 48V for backup systems
Built with brand-new, A-grade LiFePO4 cells and integrated BMS for 100% full capacity discharge
Long cycle life (>5000 cycles at 80% DOD, backed by a 3-year / 4,000 cycle warranty)
| Nominal Capacity | 200Ah |
|---|---|
| Nominal Voltage | 12.8V |
5.12kWh Wall Mounted Lithium Iron Phosphate (LFP) Battery with built-in BMS, LCD screen, and optional WiFi/Bluetooth communication for home solar energy storage.
| Cell Quantity in Series |
|---|
| 4S |
| Energy | 2560Wh (2.56kWh) |
|---|
| Max Charge Voltage | 14.6V |
|---|
| Discharge Cut-off Voltage | 10V |
|---|
| Charge Method | CC/CV |
|---|
| Standard / Max. Charge Current | 40A / 100A |
|---|
| Max. Discharge Current | 200A |
|---|
| Cycle Life | >5000 times |
|---|
| Dimension | 522 x 240 x 218 mm |
|---|
| Weight | Approx. 23 kg |
|---|
| Warranty | 5 Years (3 years parts , 2 years services) |
|---|
