Next-generation 200 kVA / 200 kW high-efficiency enterprise online UPS. Features absolute Unity Power Factor (kW = kVA), ultra-low TCO, and advanced energy-saving double conversion protection for hyperscale data centres and medical facilities.
Contact us directly on WhatsApp to get the latest live rates & discounts.

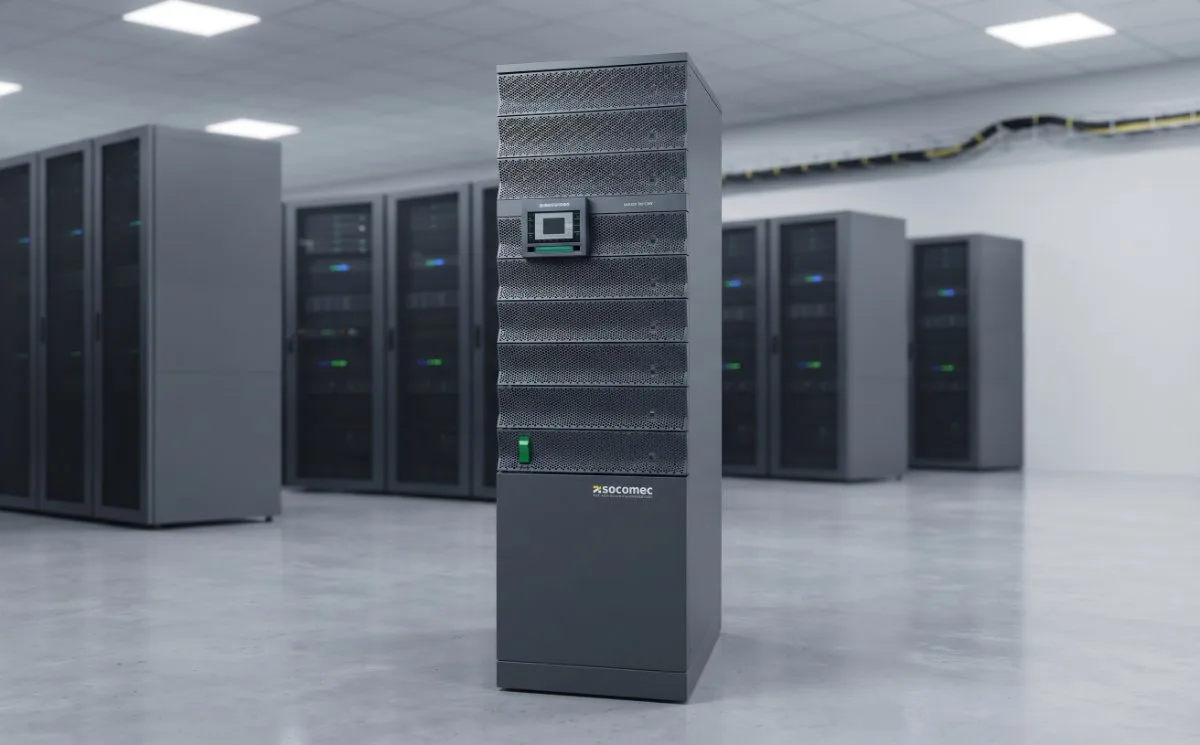

The Socomec Green Power GP 2.0 200 kVA is a premier industrial three-phase uninterruptible power supply engineered for high-availability infrastructures. Striking a perfect balance between ultimate reliability and raw power density, it features a Unity Power Factor (PF = 1), meaning it delivers 200 kW of full active power without any thermal or electrical downgrading.
Equipped with an advanced high-performance IGBT rectifier, the GP 2.0 completely isolates downstream mission-critical infrastructure from grid fluctuations while maintaining an outstanding online double conversion efficiency rating of up to 96.5% (VFI mode) and 99% in Eco mode. Its revolutionary design features an integrated Expert Battery System (EBS) that minimizes battery stress, alongside an innovative Battery Capacity Re-injection (BCR) system which recycles energy back into building circuits during scheduled testing loops.
Ultra-Green Footprint: Saves up to 36 tonnes of CO2 emissions annually compared to lower-efficiency tier alternatives.
Battery Re-injection (BCR): Allows complete discharge testing without utilizing temporary dummy load banks.
User Interface: Equipped with an intuitive 7-inch color touch-screen graphics console featuring multi-language configuration.
Double Backfeed Isolation: Advanced built-in upstream sensing circuits prevent any backward hazard currents.
High-performance 30kVA / 24kW true online double-conversion 3-phase UPS with internal battery and digital signal processing (DSP) control.
| Rated Capacity | 200,000 VA / 200,000 W (Unity Power Factor kW = kVA) |
|---|---|
| Technology | True Online Double Conversion (VFI-SS-111) |
| Input Voltage | 3-Phase 400 V AC (Wide operating tolerance: 340 V to 480 V) |
| Input Frequency | 50 / 60 Hz ± 10% auto-sensing |
| Output Voltage | 380 / 400 / 415 V AC 3-Phase + Neutral (selectable) |
| Output Frequency | 50 / 60 Hz highly stable |
| Overload Capacity | 125% for 10 minutes, 150% for 1 minute |
| Battery Compatibility | VRLA AGM, GEL, Ni-Cd, and high-performance Lithium-ion systems |
| Battery Charging | Expert Battery System (EBS) with temperature-compensated management |
| Parallel Integration | Scalable modular structures up to 4 MW capacity expansion |
High-performance 40kVA / 32kW true online double-conversion 3-phase UPS with internal battery and digital signal processing (DSP) control.
High-performance 60kVA / 48kW true online double-conversion 3-phase UPS (without internal battery) with digital signal processing (DSP) control.
