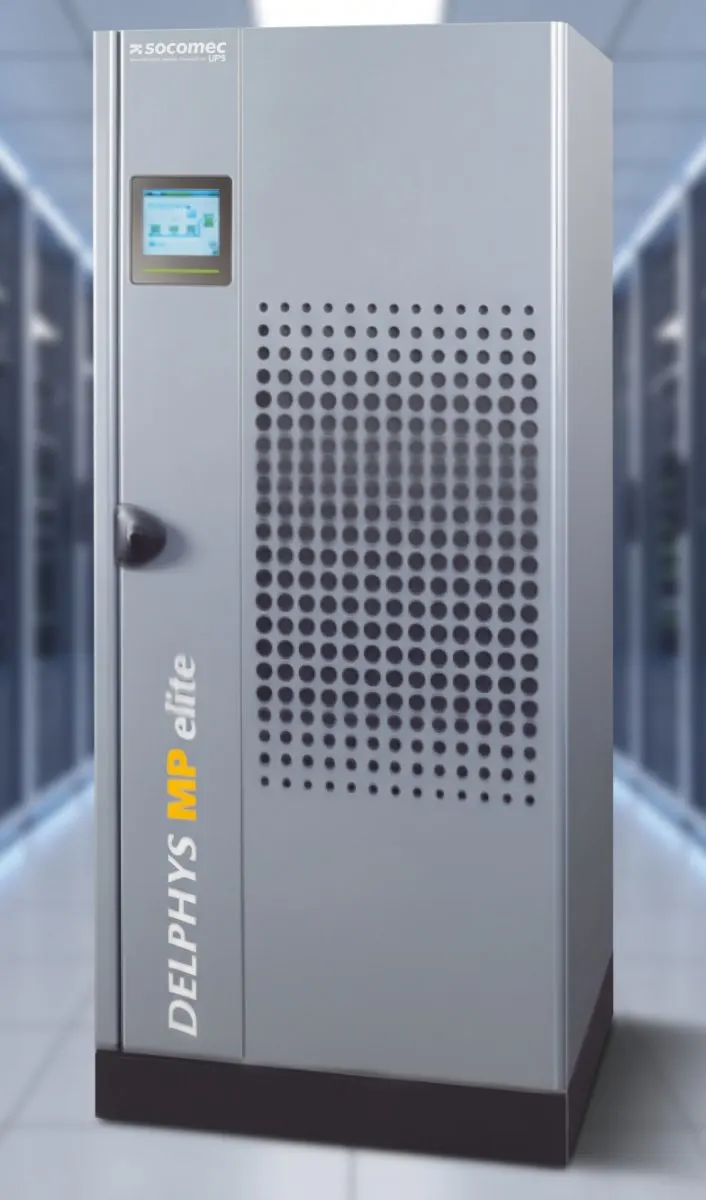

Industrial-grade 120 kVA / 96 kW (or 108 kW Elite+) 3:3 phase transformer-based online double-conversion (VFI) UPS for critical applications, data centers, and heavy manufacturing.
Contact us directly on WhatsApp to get the latest live rates & discounts.
Industrial-grade, transformer-based uninterruptible power supply engineered to provide uncompromised resilience for critical infrastructures. Featuring an advanced IGBT rectifier and built-in galvanic isolation, it guarantees pure sinusoidal power, eliminates utility harmonics, and protects sensitive medical, industrial, and IT loads against severe grid anomalies.
Clean IGBT Rectifier: High 0.99 power factor and < 2.5% THDi prevent utility distortion and eliminate the need for oversized generators.
Generator-Friendly Soft-Start: Controlled ramp-up prevents generator tripping during load transfers.
Parallel Scalability: Connect up to 6 units in decentralized or centralized bypass for N+1 redundancy or capacity expansion.
Expert Battery System (EBS): Extends battery lifespan through managed charging profiles and internal resistance testing.
Smart Remote Connectivity: Supports Modbus RTU/TCP, BACnet/IP, and NET VISION SNMP cards for centralized monitoring.
High-performance 30kVA / 24kW true online double-conversion 3-phase UPS with internal battery and digital signal processing (DSP) control.
| Topology / Technology | Online Double Conversion (VFI-SS-111) with galvanic isolation transformer |
|---|---|
| Rated Apparent Power | 120 kVA |
| Rated Active Power | 96 kW (Delphys MP Elite) / 108 kW (Delphys MP Elite+) |
| Phase Configuration | 3 Phase In / 3 Phase Out (3/3) |
| Nominal Input Voltage | 380 V / 400 V / 415 V AC |
| Input Voltage Tolerance | 340 V to 460 V AC |
| Input Frequency | 50 / 60 Hz (45 to 65 Hz auto-sensing) |
| Input Power Factor | 0.99 constant |
| Input Current THDi | < 2.5% (clean IGBT rectifier without filter) |
| Nominal Output Voltage | 380 V / 400 V / 415 V AC (configurable) |
| Efficiency (TÜV Verified) | Up to 94% (Online Double Conversion mode), Up to 98% (ECO Mode) |
| Crest Factor | 3:1 |
| Bypass | Automatic Static Bypass + Built-in Manual Maintenance Bypass |
| Parallel Capability | Up to 6 units (N+1 redundancy or distributed/centralized capacity) |
| Dimensions (W x D x H) | 1000 mm x 800 mm x 1930 mm |
| Cabinet Weight | Approx. 860 kg (standard enclosure without batteries) |
| Ingress Protection (IP) | IP20 (IP31 / IP52 available upon request) |
| Acoustic Noise Level | =< 65 dBA (at 1 meter) |
High-performance 40kVA / 32kW true online double-conversion 3-phase UPS with internal battery and digital signal processing (DSP) control.
High-performance 60kVA / 48kW true online double-conversion 3-phase UPS (without internal battery) with digital signal processing (DSP) control.
