Three-phase UPS Eaton MGE Galaxy PW 200 kVA offering centralized enterprise protection, high energy efficiency, and reliable double-conversion topology.
Contact us directly on WhatsApp to get the latest live rates & discounts.

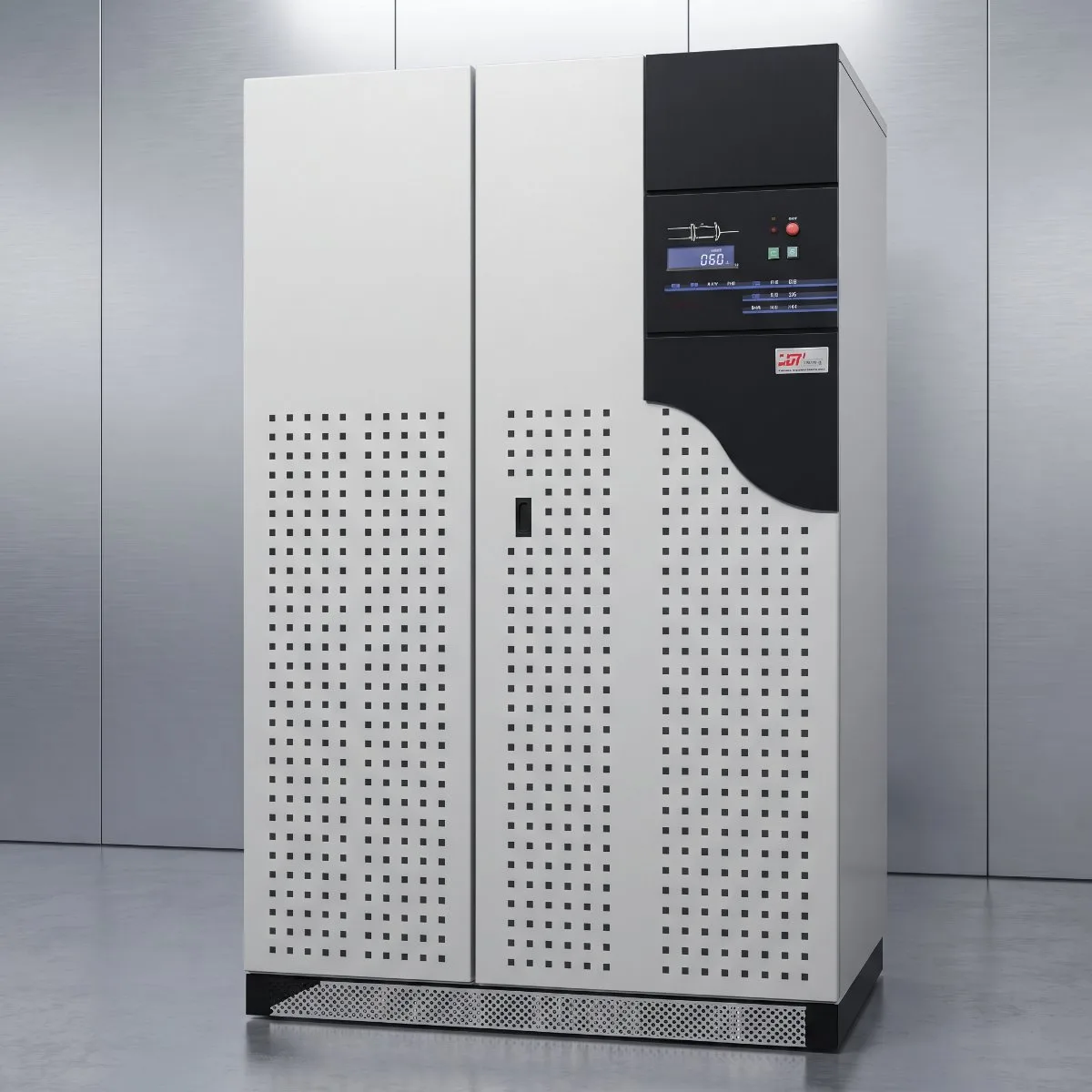

Three-phase UPS Eaton MGE Galaxy PW 200 kVA — centralized protection of the highest quality. Designed to support 30 to 300 workstations with maximum efficiency. Featuring double-conversion topology, high short-circuit and peak current resistance, and output voltage stability under large, highly nonlinear loads. Equipped with an improved DigiBat™ battery management system to optimize charging parameters, calculate real-time runtime, and extend lifespan.
DigiBat™ advanced battery monitoring system for automated testing and extended lifespan.
TNM active filter providing a power factor up to 0.96 and keeping input current distortion $THD < 4\%$.
Modular parallel connectivity for up to 4 units to scale power capacity or establish redundancy (N+1).
Comprehensive remote monitoring options including SNMP/Web, Jbus/Modbus, and dry contact boards.
High-performance 30kVA / 24kW true online double-conversion 3-phase UPS with internal battery and digital signal processing (DSP) control.
| Manufacturer | MGE |
|---|---|
| Net Weight (without packaging) | 1200 kg |
| UPS Power | 200 kVA (160 kW) |
| Nominal Voltage | 380-400-415 V ± 15% (Three phases) |
| Frequency | 50/60 Hz ± 10% |
| Topology | Double conversion (VFI complies with EN50091) |
| Efficiency (Double conversion mode) | 93% |
| Efficiency (Economic mode) | 97% |
| Operating Temperature | 0…+35 °C |
High-performance 40kVA / 32kW true online double-conversion 3-phase UPS with internal battery and digital signal processing (DSP) control.
High-performance 60kVA / 48kW true online double-conversion 3-phase UPS (without internal battery) with digital signal processing (DSP) control.
