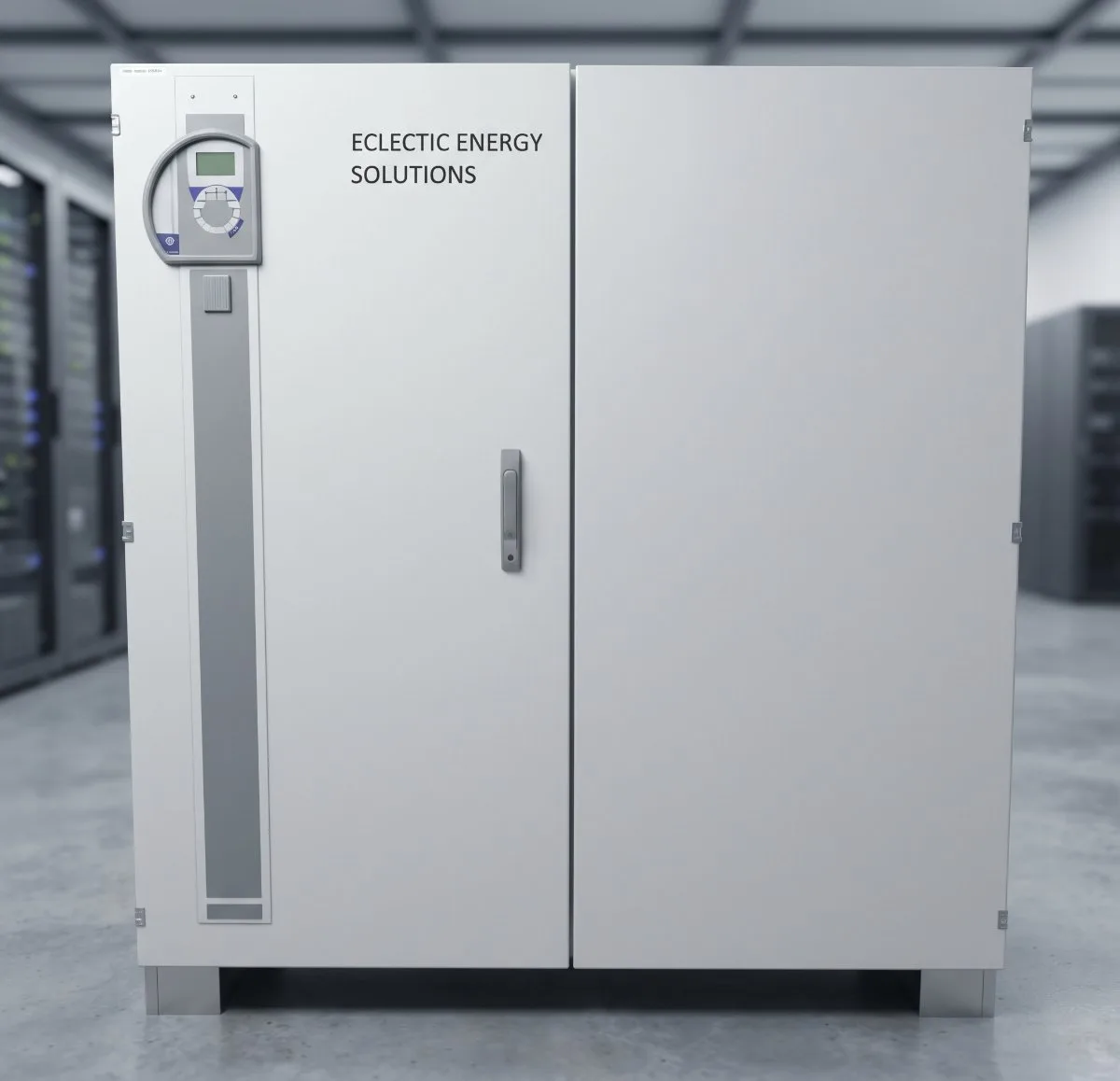

Premium continuous-duty 300 kVA Three-Phase online UPS featuring advanced DSP vector control algorithms, Intelligent Double Conversion technology, and Advanced Battery Care (ABC). Ideal for data centers, broadcasting hubs, and heavy manufacturing lines.
Contact us directly on WhatsApp to get the latest live rates & discounts.
Advanced Battery Care (ABC): Microprocessor-driven charging profiles that prolong battery pack service lifespans by up to 50%.
Parallel Expansion Capability: Link up to 8 matching units for either direct capacity upgrading or true N+1 infrastructure redundancy.
Single-Cabinet Footprint: Compact industrial engineering up to 500 kVA reduces warehouse or server-room real estate floor requirements
High-performance 30kVA / 24kW true online double-conversion 3-phase UPS with internal battery and digital signal processing (DSP) control.
| Capacity | 300 kVA / 270 kW (at 0.9 PF) |
|---|---|
| Phase Configuration | 3-Phase Input / 3-Phase Output (3:3) |
| Topology | Intelligent Double Conversion Online (VFI-SS-111 compliant) |
| Input Nominal Voltage | 400V AC (380V / 415V selectable options) |
| Input Frequency | 50 Hz / 60 Hz Auto-sensing |
| Input Harmonic Distortion (THDi) | < 5% (Without bulky external filters) |
| Output Nominal Voltage | 400V AC Three-Phase |
| Output Power Factor | 0.9 lagging (supports modern high-PF server loads) |
| System Efficiency | Up to 97% in optimized operating modes |
| Inverter Technology | IGBT with DSP Vector Control |
| Overload Capacity | 125% for 10 minutes, 150% for 1 minute |
| Maximum Acoustic Noise | ≤ 65 dBA at 1 meter |
| Communication Interface | RS232, Dry Contacts, and built-in SNMP network slot |
High-performance 40kVA / 32kW true online double-conversion 3-phase UPS with internal battery and digital signal processing (DSP) control.
High-performance 60kVA / 48kW true online double-conversion 3-phase UPS (without internal battery) with digital signal processing (DSP) control.
