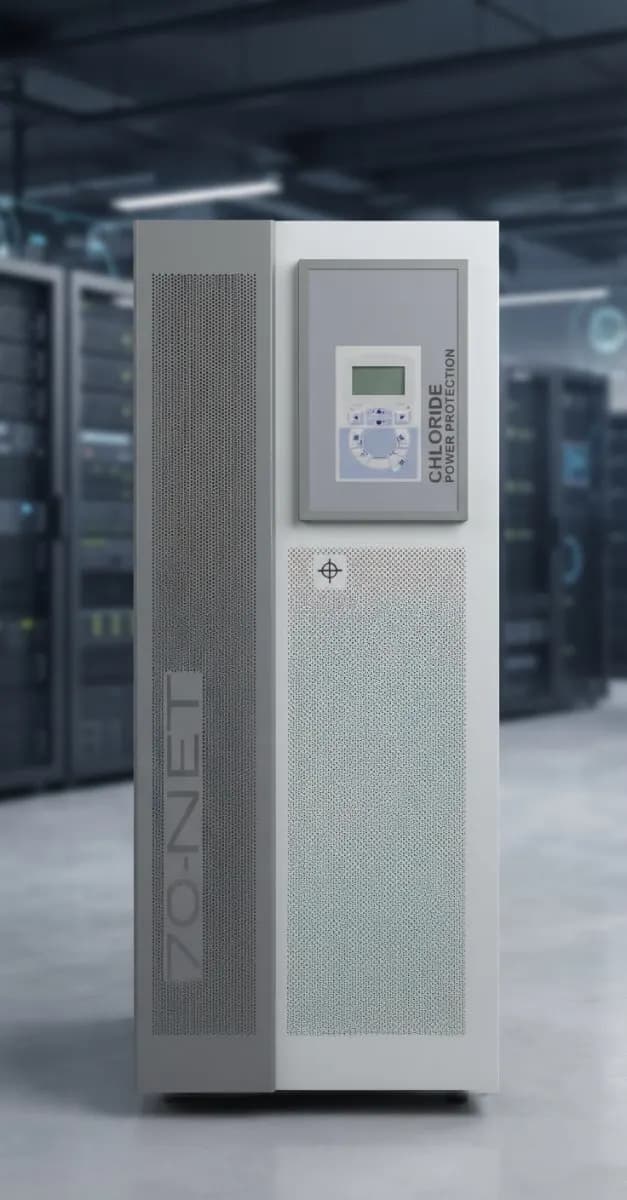

Industrial-grade 40 kVA / 32 kW transformerless online double-conversion three-phase UPS with advanced battery care and high parallel capacity.
Contact us directly on WhatsApp to get the latest live rates & discounts.
High-performance 30kVA / 24kW true online double-conversion 3-phase UPS with internal battery and digital signal processing (DSP) control.
Low Upstream Harmonics: Attains a low input THDi of < 8% naturally, eliminating the need to oversize line transformers or supply generators
Advanced Battery Care (ABC): Temperature-compensated charging and software testing reduce structural micro-ripple to prolong standard battery lifespans
Scalable Vector Management: Patented digital execution speeds up voltage adjustments during heavy phase imbalances
Flexible Comm Ports: Native build provides localized volt-free contacts, dual RS232 slots, and expansion room for ManageUPSNET SNMP routing
Remote Diagnosis Facility: Entirely compatible with LIFE2000 remote diagnostic maintenance arrays for early fault alerts
| Topology / Technology | Online Double Conversion (VFI-SS-111) with Digital Interactive Mode options |
|---|---|
| Rated Apparent Power | 40 kVA |
| Phase Configuration | 3 Phase In / 3 Phase Out (3/3) |
| Rated Active Power | 32 kW (at ambient temp >25°C) / 35 kW (at ambient temp <25°C) |
| Phase Configuration | 3 Phase In / 3 Phase Out (3/3) |
| Nominal Input Voltage | 3 x 380 V / 400 V / 415 V AC + Neutral (3NPE) |
| Input Voltage Tolerance | 280 V to 460 V AC |
| Input Power Factor | 0.97 |
| Input Current THDi | < 8% (Built-in active harmonic reduction without additional filtering) |
| Nominal Output Voltage | 3 x 380 V / 400 V / 415 V AC (configurable at installation) |
| Battery Type Configuration | Internal VRLA-AGM lead-acid, valve-regulated, maintenance-free |
| Nominal Battery DC Voltage | 396 V DC |
| Bypass Configuration | Automatic static electronic switch + built-in manual maintenance bypass |
| Parallel Scaling | Modular expansion capable up to 8 units in N+1 redundancy |
| User Interface | Backlit Liquid Crystal Display (8 lines x 12 characters) with structural menu keys |
| Dimensions (W x D x H) | Approximately 815 mm x 825 mm x 1670 mm |
| Ingress Protection Rating | IP20 |
| Operating Temperature Window | 0 °C to +40 °C |
High-performance 40kVA / 32kW true online double-conversion 3-phase UPS with internal battery and digital signal processing (DSP) control.
High-performance 60kVA / 48kW true online double-conversion 3-phase UPS (without internal battery) with digital signal processing (DSP) control.
