APC Smart-UPS SRT 1000VA 230V
High-density, double-conversion on-line power protection (1000VA / 1000W) with pure sine wave output and zero transfer time.
Loading catalog & live prices...

Enterprise-grade, high-capacity double-conversion on-line power protection (10000VA / 10kW) with pure sine wave output, web/SNMP management card, and flexible single/three-phase input.

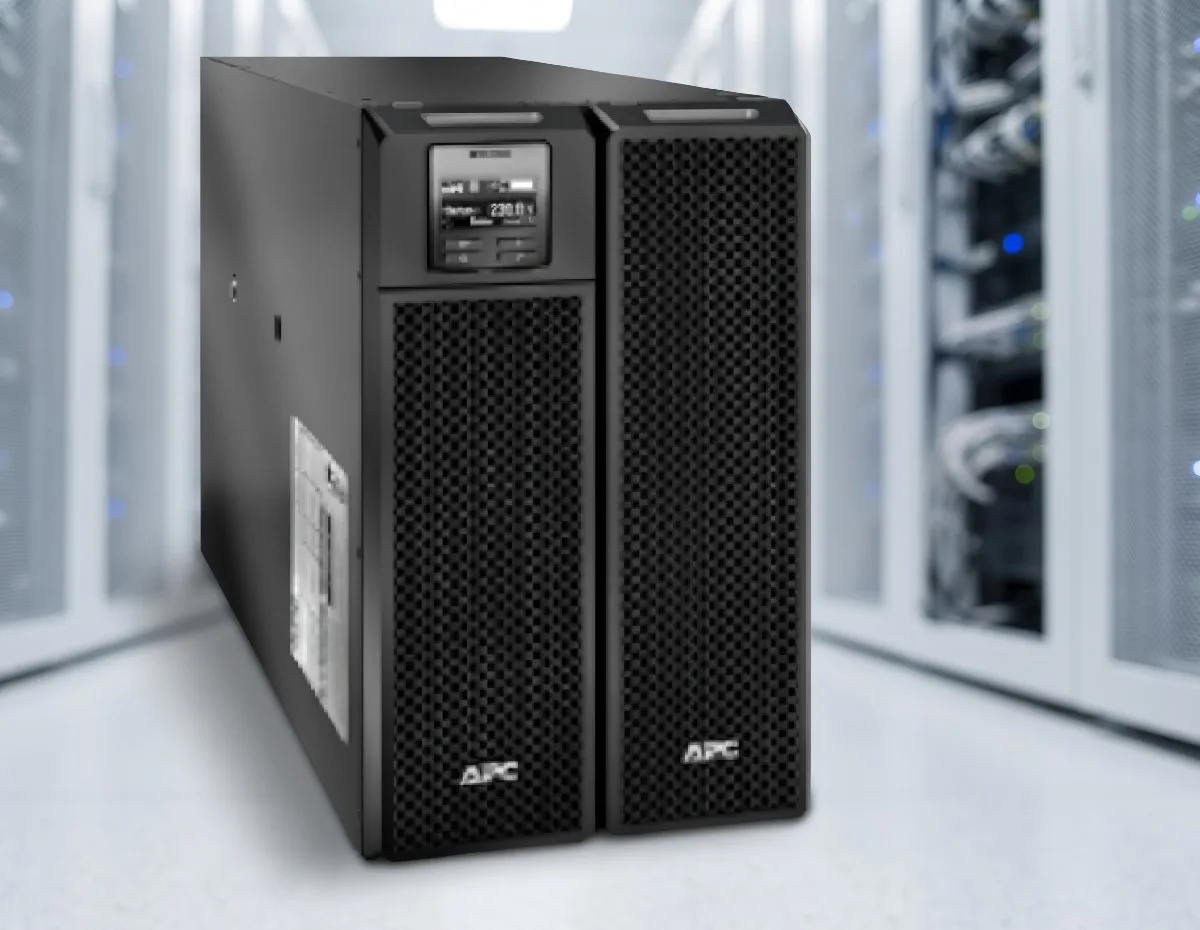

The APC Smart-UPS SRT 10000VA (SRT10KXLI) delivers heavy-duty, true double-conversion on-line power protection designed for large data centers, server rooms, medical facilities, and critical industrial infrastructure. Featuring 10kW of pure sine wave power, zero transfer time, pre-installed Web/SNMP management capabilities, and automatic/manual internal bypass, it ensures maximum availability and continuous clean power under severe electrical loads.
| Topology | Double conversion online |
|---|

High-density, double-conversion on-line power protection (1000VA / 1000W) with pure sine wave output and zero transfer time.
| Rated Power | 10000 VA / 10000 W (10 kW) |
|---|
| Output Voltage | 230V (Pure Sine Wave) |
|---|
| nput Voltage Limits | 160 - 275 V (100 - 275 V adjustable at half load; supports 3-phase 400V / 380V / 415V configurations) |
|---|
| Input Frequency | 40 - 70 Hz auto-sensing |
|---|
| nput Connection Type | Hard Wire 3-wire (1PH+N+G) or Hard Wire 5-wire (3PH + N + G) |
|---|
| Output Receptacles | Hard Wire 3-wire, 6 x IEC 320 C13, 4 x IEC 320 C19, 3 x IEC Jumpers |
|---|
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte (leakproof) |
|---|
| Recharge Time | 1.5 hours (Replacement battery: APCRBC140, Quantity: 2) |
|---|
| Dimensions (H x W x D) | 43.2 cm x 26.3 cm x 71.5 cm |
|---|
| Net Weight | 111.82 kg |
|---|

high-density, double-conversion on-line power protection (2200VA / 1980W) with pure sine wave output and zero transfer time for critical IT infrastructure and commercial equipment.

High-density, double-conversion on-line power protection (3000VA / 2700W) with pure sine wave output, scalable runtime, and zero transfer time
