High-capacity 120kVA/120kW true online double-conversion three-phase UPS with unity power factor, designed for heavy industrial plants, medical facilities, and tier-3 data centers.
Contact us directly on WhatsApp to get the latest live rates & discounts.

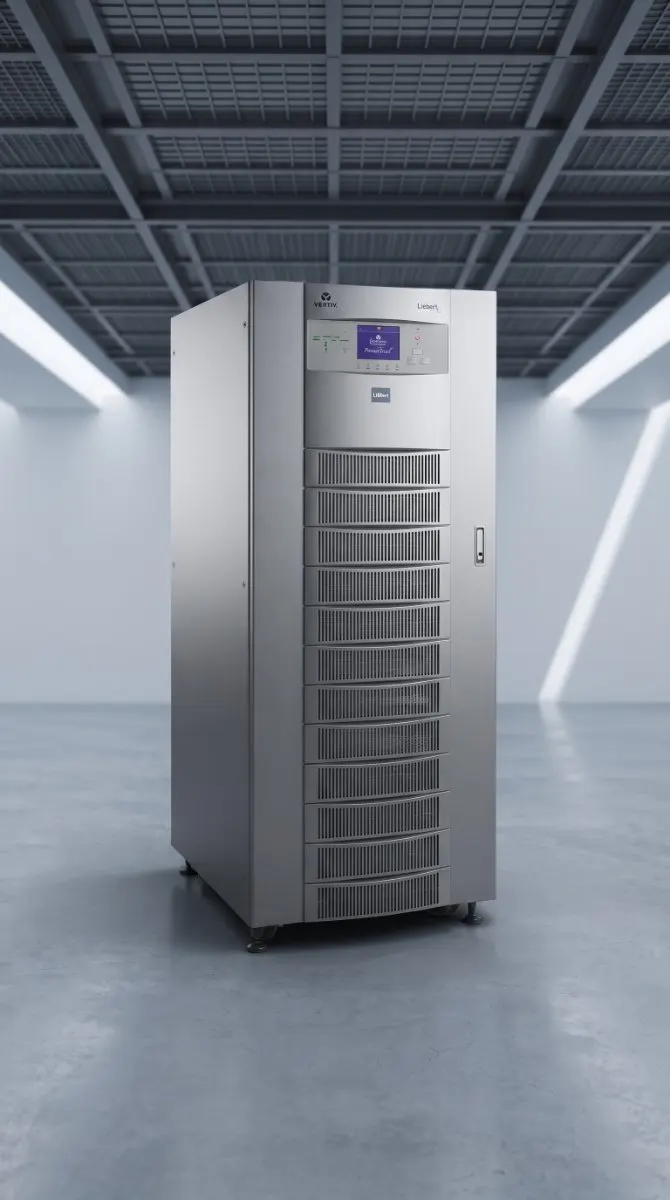

The 120kVA Uninterruptible Power Supply (UPS) delivers ultimate electrical power protection for highly critical and large-scale infrastructures. Featuring a high-performance transformer-free 3-level IGBT topology and Full Digital Control, it guarantees an ultra-high efficiency of up to 96.5% in double-conversion mode. With a Unity Power Factor (1.0), it delivers a full 120kW of continuous power output without de-rating. Engineered to handle highly complex non-linear industrial loads, severe grid voltage fluctuations, and frequent outages, it completely isolates medical equipment, telecom centers, and automated manufacturing units from power failures.
Smart Loop/Easy Test System: Allows complete performance verification testing under full load capacity without needing a real load bank.
Advanced Battery Intelligence: Compatible with conventional heavy VRLA systems as well as modern Lithium-ion battery cabinets.
Robust Fault Isolation: Includes dry contact triggers for emergency power off (EPO), backfeed loop defense, and smart shunt-trips.
Next-Gen Monitoring: Smart touch-screen color LCD interface with optional Modbus and SNMP agent cards for continuous remote web access.
High-performance 30kVA / 24kW true online double-conversion 3-phase UPS with internal battery and digital signal processing (DSP) control.
| Capacity | 120 kVA / 120 kW (Unity Power Factor 1.0) |
|---|---|
| Topology | True Online Double Conversion (VFI-SS-111) |
| Inverter/Rectifier | Advanced 3-Level IGBT Converter |
| Input Phase | 3-Phase + Neutral + PE (Hardwired) |
| Output Phase | 3-Phase + Neutral + PE (Hardwired) |
| Nominal Voltage | 380V / 400V / 415V AC selectable |
| Input Current THDi | < 3% under full linear load |
| Output Waveform | Pure Sine Wave (<1% Linear Load THDv) |
| System Efficiency | Up to 96.5% Online Mode / >99% ECO Mode |
| Transfer Time | 0 ms (Continuous Online Phase) |
High-performance 40kVA / 32kW true online double-conversion 3-phase UPS with internal battery and digital signal processing (DSP) control.
High-performance 60kVA / 48kW true online double-conversion 3-phase UPS (without internal battery) with digital signal processing (DSP) control.
